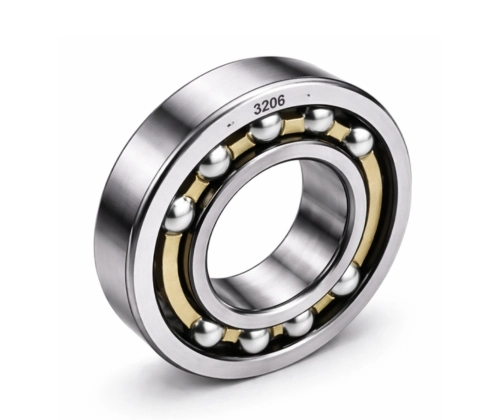

Ball Bearing 3206

To​ maximize the efficiency of your devices, opt for this 3206 ball bearing - a top-notch precision part that is designed for high performance, reliability, and long service life. It is not an ordinary bearing; in fact, it is a 3206 double-row angular contact bearing that has been specially created to perform under a combination of very complex load conditions with high rigidity.

Compared with regular bearings, it has a novel construction that enables it to take a large radial as well as axial load simultaneously. That makes it the ideal choice when force and correct guidance are equally important.
With its unique features and modern materials, this 3206 ball bearing delivers a really high lifespan and great strength, requiring almost no maintenance as well as less downtime. The fact that it generates very little friction gives it a smooth and highly effective operation, which results in energy savings and less heat production.

Thanks to double-row construction, the stiffness is there by default, which is essential to keep accuracy high-speed, heavy-duty applications. With this bearing, the machines will run smoothly even under very hard working conditions.
Your investment in the 3206 double-row angular contact ball bearing will bring you benefits such as reliable operation of the machine, a very high level of efficiency of work performance over the long run of its operation, as well as a relatively prolonged service life of the whole machinery.

No more replacements for the time being, as the bearing is built to serve for a long time, so you get trustworthy support for all of your key systems. You just need to make one of the right decisions about what a bearing should be like in a very demanding application and where to buy the best ball bearing 3206 in India. Don't go for cheap - choose quality and performance; go with ​3206.

Technical Specifications

For detailed performance and compatibility, review the precise specifications of the 3206 bearing:

• Product Name: 3206 Double Row Angular Contact Ball Bearing
• Brand: Premium Quality / Industry Standard (Manufactured to ISO Standards)
• Model Number: 3206 (often also referred to as 3206 A, 3206 B, etc., for specific variants)
• Material: High Carbon Chromium Steel (GCR15 / 52100 bearing steel)
• Dimensions:
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 23.8 mm
• Weight: Approximately 0.35 kg (0.77 lbs)
• Color Options: Standard Metallic Silver
• Power / Capacity:
  • Dynamic Load Rating (Cr): Typically 33.5 kN
  • Static Load Rating (Cor): Typically 20.4 kN
  • Limiting Speed (Grease): ~9,500 rpm
  • Limiting Speed (Oil): ~13,000 rpm
• Compatibility: Designed for universal fit in systems requiring specific dimensions, high radial-axial load capacity, and rigidity.
• Warranty: 1 Year Manufacturer's Warranty (Standard)
• Country of Origin: Manufactured to International Quality Standards (Global Sourcing, widely available from 3206 bearing supplier India)
• Additional Features:
  • Open type (Standard)
  • Available with contact seals (2RS) or shields (ZZ) for enhanced protection against contaminants (e.g., 3206-2RS, 3206-ZZ).
  • High-strength polyamide or pressed steel cage options.

3. Applications / Uses

The​ 3206 double-row angular contact bearing's ability to work well, as well as its sturdy construction, makes it the perfect choice for many types of mechanical devices that require high levels of precision and reliability. Some other areas where it can be very helpful are:

• Spindles of machine tools, which are necessary in keeping accuracy and rigidity when running milling machines, lathes, and grinders.
• Pumps and compressors: a bearing capable of handling combined loads gives stable shaft support while handling liquids and gases efficiently.
• Speed boxes and Gearbox Transmissions: They are used to smoothly transmit power across industrial and automotive gears.
• Electric Motors: Used in large, high-performance electric motors where rotor alignment and vibration reduction are the main concerns.
• Field machines: Provide a strong foundation for moving parts of tractors, harvesters, and irrigation systems capable of withstanding rough weather.
• Woodworking machinery: The bearing helps ensure accurate cutting and shaping in machines such as saws, routers, and planers.
• Spinning and Weaving machines: It is a bearing that enables smooth, high-speed processing of textile machinery.
• Transportation and Storage Systems: The bearing can be found supporting conveyors, forklifts, and other hoisting machinery, facilitating continuous operation under heavy ​loads.

4. Product Comparison

Understanding the benefits of the 3206 ball bearing compared to other types can help you make an informed decision.

Why the 3206 Stands Out

The​ 3206 double-row angular contact bearing is a much better combination of high load capacity, rigidity, and precision over single-row types. Of course, the 3206 bearing price is initially higher, but with its longer lifecycle, maintenance costs are lower. This bearing, therefore, offers excellent economic value from the outset. This means that in the long run, the 3206 bearing provides an overall return on the investment due to its long service life. This type of bearing is recommended for use in operating places where there are demands for very reliable performance, good combined load handling, as well as deflection minimization. The 3206 ball bearing supplier in India may be what you're looking for, and hoping for a bearing that contributes to production and product life without ​fail.
