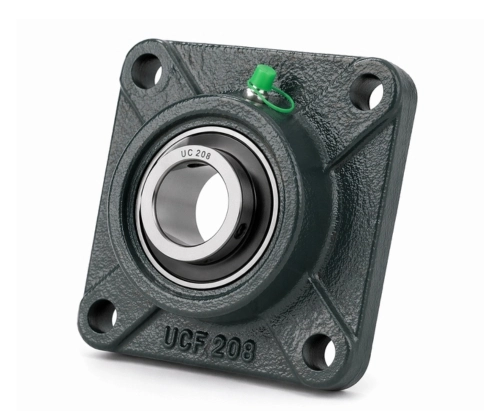

Bearing UCF 208

Product Overview

Get​ the optimal performance from your machinery and have it last by using the UCF 208 bearing unit. This is a strong and important part of the structure that provides the best support for the shaft. It is a top-of-the-line UCF 208 pillow block flange bearing unit that integrates a bearing insert of the highest quality in a very robust cast iron square housing. This arrangement will give an extraordinary level of stability and high efficiency during operation. The unit is designed to perform in extreme environments and can ensure a smooth rotation while reducing friction, at the same time taking up radial and moderate axial loads.
The design of this integrated bearing is what makes the UCF 208 flange bearing very different from others. It already comes with a lubricant and bearing factory-sealed, which cuts down the time required for installation and reduces maintenance to an absolute minimum. In addition, its solid housing acts as strong shielding that prevents contaminants from getting into the bearing; therefore, even under tough and dusty working conditions, these bearings can last for a very long time.
This UCF 208 bearing unit of ours has been made very meticulously from extremely good materials that guarantee the product not just great endurance but also constant performance over a very long period of time. This quality-oriented approach has the advantage of minimizing your downtime and resulting in large capital savings for the business. No matter if it is a replacement for the old device or you are building the new unit from scratch, it is essential that you pick the right UCF 208 supplier. Our UCF bearings are the type of high precision engineered bearings with excellent resistance to abrasive wear.
Our unit is built not only to meet but to exceed the standards that define bearing units. You will not only get a bearing unit but a performance and reliability guarantee, so choose wisely. Do not miss out on the advantages of an ultimate-bearing-grade device. It is worth it to go for a UCF 208 Pillow Block Flange Bearing for its dependability and long-lasting ​characteristics.

Technical Specifications

Here are the precise specifications for the UCF 208 bearing unit:

• Product Name: UCF 208 Bearing Unit / Square Flange Pillow Block Bearing
• Brand: (Generic High-Quality Manufacturer)
• Model Number: UCF 208
• Material:
• Housing: High-Grade Cast Iron
• Bearing Insert: GCr15 Chrome Steel (Heat-treated for durability)
• Dimensions (Approximate):
• Bore Diameter (d): 40 mm
• Center Height (H): 49.2 mm
• Overall Housing Width (A): 137 mm
• Overall Housing Height (A1): 32 mm
• Mounting Hole Center Distance (J): 108 mm
• Mounting Bolt Size: M12
• Weight: Approximately 2.0 - 2.5 kg (Varies slightly by manufacturer)
• Color Options: Standard Industrial Grey (Cast Iron)
• Power / Capacity (Bearing Insert UC 208):
• Dynamic Load Rating (Cr): 30.7 kN
• Static Load Rating (Cor): 19.0 kN
• Compatibility: Designed for use with 40mm diameter shafts
• Warranty: 1-Year Manufacturer's Warranty (Terms apply)
• Country of Origin: Varies (Typically Asia or Europe, depending on sourcing)
• Additional Features:
• Pre-lubricated and sealed for life (re-lubrication possible via grease nipple)
• Self-aligning capability to accommodate initial misalignment
• Set screw locking for secure shaft attachment
• Robust square flange housing for stable mounting

Applications / Uses

One​ of the major advantages of the UCF 208 bearing is its versatility, so that it meets the requirements in different fields like industry and commercial. The well-finished appearance, the solid structure, and most of all the great performance under the worst conditions are the features that make this a preferred choice for the following applications:

• Conveyors: Besides conveying machines, it is also useful in conveyor equipment where conveying goods is done by machines from manufacturing lines and warehouses, etc. With such a shaft, it can be ensured that operations are smooth without disruptions.
• Tractors, harvesters and irrigation equipment: In a way, these tools can also serve the purposes of agricultural tools. This bearing is able to endure difficult outdoor conditions and is still capable of holding up the shafts, which are the main rotating parts of the machines.
• Textile Industry: In various textile and clothing machinery, shafts need to be held by a bearing that can provide precise and stable support.
• Industrial heating, ventilation, and refrigeration systems are supported with this bearing to help fan and blower shafts.
• In the food processing industry, it can be used to hold the shafts of some processing lines when the bearing is compatible with food-grade oils and materials.
• Packaging machinery: By having packaging machines run through the help of bearings, they ensure precision and high quality in a very reliable performance.
• Woodworking equipment: This is one among the many applications of bearings in a timber mill or woodworking factory, such as a spindle or gear drive of a saw blade, a planer, etc,
• Industrial Machinery in General: This type of machine parts that is used where only a strong and steady type of bearing that holds the rod is required for such ​parts.

Product Comparison

When evaluating the UCF 208 bearing unit, it's helpful to compare it against other options to understand its specific advantages.

Why UCF 208 is Better

Flanged​ Bearing UCF 208 is the perfect compromise in terms of economy and performance. Although the cheap alternatives may have an attractive price label at the start, they very rarely end on an equally happy note, as these cheaply made products cause more problems like high replacement costs and plant downtime. High-quality products, on the other hand, give the best results, but they are expensive,e and that additional feature that you paid for may not even be required for standard industrial operation. UCF 208 is a reliable and long-lasting option that comes with a sturdy cast-iron housing and a good-quality bearing insert - a perfect fit for an industrious business which wants a consistent level of performance without spending a large sum of money. You can purchase a UCF 208 bearing at quite a reasonable price - this ensures that the product will give you long-lasting, dependable ​quality.
