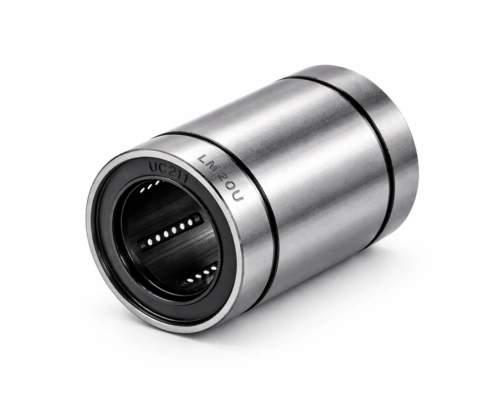

LM20UU Linear Ball Bearing

Take​ your automation and motion control designs to another level by using the LM20UU linear ball bearing — a fundamental element that was specially developed to achieve a new level of accuracy and trustworthiness. The highly durable linear motion LM20UU bearing is intended to perform smoothly as a sliding bearing of a low-friction type, which is a requirement in a vast number of cases. The most remarkable feature of LM20UU is a dual- sealed "UU" design which not only makes dust, dirt, and moisture virtually ineffective but is also responsible for greatly prolonged life and maintenance-free operation of the bearing.

Produced from a high-grade steel with excellent wear resistance, these LM20UU linear ball bearings are highly reliable and long-lasting under harsh operating conditions. Its internal ball return mechanism prevents uneven loading by distributing the loads evenly, which leads to low vibration that translates into reduced operating noises as well as extremely accurate positioning. If you're constructing a new CNC machine, upgrading a 3D printer, or working on designing industrial machinery, the LM20UU is the linear sliding component that is essential to a frictionless, stable, and well-guided movement. We offer LM20UU linear bearings, and our suppliers are our main partners who deliver top-quality and durable linear rolling elements. The LM20UU bearing combines high performance, tough durability, and cost-effectiveness, which together justify that its price is an investment in long-term results. Go for an LM20UU bearing for the highest quality in linear motion – the very least you can do for your ​projects.

Technical Specifications

• Product Name: Linear Ball Bearing
• Brand: Generic / Unbranded (Typical Industry Standard)
• Model Number: LM 20UU
• Material: High Carbon Chromium Bearing Steel (Outer Casing), Hardened Steel Balls, Synthetic Rubber Seals
• Dimensions:
  • Inner Diameter (ID): 20 mm
  • Outer Diameter (OD): 32 mm
  • Length (L): 42 mm
• Weight: Approximately 90-110 grams (varies slightly by manufacturer)
• Color Options: Metallic Silver (Bearing), Black (Seals)
• Power / Capacity:
  • Dynamic Load Rating (Cr): 882 N (Typical)
  • Static Load Rating (Cor): 1370 N (Typical)
• Compatibility: Designed for use with 20mm hardened and ground linear shafts
• Warranty: 1-Year Manufacturer's Warranty (Standard, check with specific supplier)
• Country of Origin: Varies (Typically China, Japan, Taiwan – check specific product)
• Additional Features: Double-sealed (UU) for enhanced protection against contaminants, self-lubricating (greased during assembly), high precision, low friction.

Applications / Uses

The​ LM20UU linear ball bearing is a highly adaptable mechanism that can be considered one of the key components for precision and reliable linear motion in different types of applications.

• CNC Routers & Mills: In the area of CNC Routers and Mills, the bearing plays a major role in accurately moving tool heads and worktables, so that you have excellent results even in automated machining.
• 3D Printers: The linear motion components allow the print head (extruder) and the build platform to move in a very stable and accurate way for high-quality additive manufacturing.
• Industrial Automation: In pick-and-place robots, assembly lines, and material handling equipment, linear ball bearings provide highly efficient and repetitive movement, therefore increasing productivity by reducing the need for human intervention.
• Laser Engravers & Cutters: Laser engravers & cutters utilize these components to control the movement of the laser heads, as they need the highest level of precision for the detailed and cutting parts of their operations.
• Measurement & Inspection Equipment: Measurement & inspection machines are best when they have linear positioning components; for instance, coordinate measuring machines (CMMs) and optical comparators need them to take accurate readings.
• Medical Devices: Medical devices often have these linear components because the moving parts must be very reliable. Also, with the help of controlled linear movement, different functions can be carried out.
• Packaging Machinery: Machines for packaging materials benefit from the bearings as they maintain the regular and fluent movement of various parts along an automated packaging line.
• DIY and Hobby Projects: LM20UU bearings have been chosen by many DIY and hobby makers because of their relatively low price, yet still decent performance; besides, the LM20UU bearing provides the hobbyists with the possibility of building their own linear rails, creating camera sliders and mini robotic systems.

Product Comparison: LM20UU Linear Ball Bearing

When considering an LM20UU linear ball bearing for your project, it's helpful to understand how it stacks up against other types of linear bearings. The LM20UU offers a compelling balance of features, performance, and durability.

Why LM20UU is Better

The​ LM20UU linear ball bearing is clearly superior to unsealed versions by virtue of the built-in double seals that not only drastically increase the lifespan but also protect the inner workings from outside elements, even during prolonged usage in environments where the air or the dust levels are not the best. In addition to that, the LM20UU offering from this manufacturer at a lower price not only represents good value but also keeps up with the standards demanded by the most important features related to smooth and accurate linear movement, which in today's world mostly include CNC machines, 3D printers, and general automation systems. The product's main selling points are a great combination of cheap upfront investment and reliable, long-running time.
