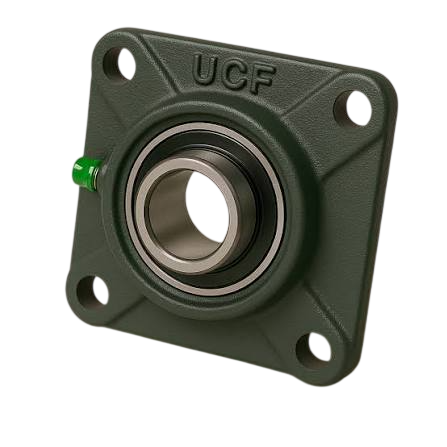

Bearing UCF 207 Flange Unit

Give your equipment the ultimate performance and reliability upgrade with the dependable UCF 207 bearing unit. This flange-type bearing is one of our high-tech product lines and is mainly used in industrial processes that require strong support and efficient operation with the lowest possible maintenance time. The unit is primarily a four-bolt square flange-type housing that not only gives you a solid and secure mounting solution but also assures you that your machine will work smoothly for years without being out of alignment. Its primary role is to protect a bearing insert (most often a UC 207 series bearing), which it shields from external substances, all while allowing lubrication to occur in the inner workings smoothly and with little resistance.

With a UCF 207, you get several advantages, of which the most obvious one is the combination of being able to last for a long time without a breakdown, easy installation, and the ability to perform with top-notch quality consistently. Having a strong casing made from cast iron, the bearing housing unit can easily tolerate heavy loads and hostile conditions, so there is no need for a premature change. A special feature of the unit is the ability to correct alignment errors at the beginning thanks to the rolling of the outer surface of the bearing insert. Thus, the machine will be easier to set up; besides, you will also enjoy less wear. Re-lubrication becomes a snap with the grease nipples, which means the working life of the bearing will be longer and the maintenance period will be reduced.

It is always wise to make a change and replace your existing product with a UCF 207 bearing unit to keep your production running smoothly without any delays or downtime. You can also use it when designing brand-new machinery. The unit will give you maximum benefit for your money when it comes to keeping your critical equipment up and running. As your dependable partner and supplier in the industrial component field, we can assure you that our UCF 207 flange bearings will give you not only high-quality materials but also will meet and exceed all performance and durability parameters for the years ahead. Choosing a UCF 207, you are making the choice of a trusted bearing solution that will support your equipment without fail and will be there for you when it matters most. Should you have any inquiries regarding the price details for bearing UCF 207 or need help placing a bulk order, do not hesitate to browse through our inventory today and see for yourself what the right choice will look ​like.

Technical Specifications

• Product Name: Bearing UCF 207 Flange Unit
• Brand: (Generic High-Quality / Manufactured to International Standards)
• Model Number: UCF 207
• Material:
• Housing: High-Strength Cast Iron (typically ASTM A48 Class 30 equivalent)
• Bearing Insert: High-Carbon Chromium Steel (SAE 52100 equivalent)
• Dimensions:
• Bore Diameter (d): 35 mm
• Bolt Hole Spacing (J): 98 mm
• Overall Length of Housing (A): 125 mm
• Overall Width of Housing (B): 125 mm
• Overall Height (H): 125 mm (approx.)
• Mounting Bolt Hole Diameter (N): 12 mm
• Weight: Approximately 1.8 - 2.2 kg (varies slightly by manufacturer)
• Color Options: Standard Industrial Grey/Black
• Power / Capacity:
• Dynamic Load Rating (Cr): 25.7 kN (approx.)
• Static Load Rating (Cor): 15.4 kN (approx.)
• Compatibility: Designed for use with 35mm diameter shafts in a wide range of industrial and agricultural machinery.
• Warranty: 1-Year Limited Manufacturer's Warranty against defects in material and workmanship.
• Country of Origin: Manufactured to International Standards (typically sourced globally from certified facilities).
• Additional Features:
• Re-lubrication facility with grease nipple.
• Two set screws for secure shaft attachment.
• Housing designed for easy mounting on flat surfaces.
• Spherical outer ring for initial misalignment compensation.

Applications / Uses

The​‍​‌‍​‍‌ UCF 207 flange bearing is the type of component that is used in various ways in different industries and is one of the reasons such industries can still get their job done despite the varying operational conditions. Because of its very sturdy design the shaft it holds is not easily damaged. It is a preferred option for:

• Conveyor Systems: This type of bearing is great for rollers and drive shafts that are subjected to heavy-duty work conditions in material handling; it is perfect for conveying belt bearing solutions.
• Agricultural Machinery: This kind of bearing is very important in a range of farm implements like spreaders, tillers, and harvesting machines. Because of that, it is best for agricultural bearing needs.
• Packaging Equipment: It is a great way to keep the parts of a package machine to moving parts that are being driven very smoothly.
• Textile Machinery: In areas such as spindles and rollers where high precision and reliability are the norm, they are used here.
• Food Processing Equipment: They are suitable for areas in a food processing plant where there is a high level of contamination but no water. They provide a sturdy support to shafts of mixers and other machines in the production line.
• Industrial Fans and Blowers: For a fan shaft that is mounted with the aid of a bearing, this bearing is the right one; that is one of the reasons a heavy-duty fan bearing replacement is done with this kind.
• Printing Presses: Here, they ensure that alignment and rotation remain perfect, even under extreme printing working conditions.
• Compressing Systems: They serve as bearing supports for different kinds of pumps that are used in industrial liquid transportation systems.
• Miscellaneous Industrial Machinery: It is the power transmission, gearbox, and rotary motion applications that make the bearings the preferred ​‍​‌‍​‍‌choices.

Product Comparison

When considering a UCF 207 bearing unit, it's helpful to understand how it stacks up against other options in the market. The UCF 207 strikes an excellent balance between cost-effectiveness, robust design, and reliable performance.

Why choose our UCF 207 Flange Bearing?

The UCF 207 flange bearing we produce is the result of an innovative combination of the solid materials used, consistent functionality, and reasonable affordability. It delivers the needed strength and seamless functioning for most industrial jobs at a fraction of the price of the branded ones. If you want a trustworthy UCF 207 flange bearing supplier without sacrificing quality, our bearings may be the best choice of a lifetime and for your rest assured ​‍​‌‍​‍‌operation.
